This tutorial introduces Cloudinary, and demonstrates how to build a gallery application using Express and Node. Cloudinary is a service for streamlining asset management -- if you're tired of optimising images and manually uploading them to an asset server or CDN, then Cloudinary might be what you're looking for.

One reason Cloudinary is useful to us as Node developers is the Cloudinary Node module (GitHub: cloudinary / cloudinarynpm, License: _MIT, npm: cloudinary). It can be used to easily generate optimised images, thumbnails, and automatically upload them to Cloudinary. Let's drop it into an Express application to see what happens!

The full source for this tutorial is available here: alexyoung / dailyjs-cloudinary-gallery.

Step 1: Create a Cloudinary Account

Register for a free account at Cloudinary. That'll give you 500 MB of storage and a gigabyte of monthly bandwidth. Paid plans start at $39 a month, and that increases the storage to 10 GB and adds 40 GB a month of bandwidth.

Once you've created your account, sign in and take a look at the right-hand panel that reads "Account Details".

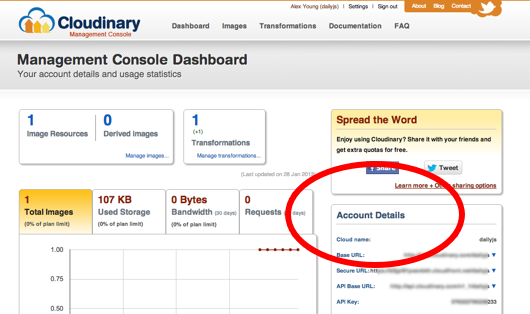

The Cloudinary management interface.

To follow this tutorial, you'll need the api_key and api_secret, so make a note of those.

Step 2: The Express App

Assuming you've already installed Node, open a terminal and run npm install -g express. Once that's done, run express dailyjs-cloudinary-gallery to create a new Express project.

Open package.json and add the cloudinary dependency:

  "name": "application-name",
  "version": "0.0.1",
  "private": true,
  "scripts": {
    "start": "node app"
  "dependencies": {
    "express": "3.0.3",
    "jade": "*",
    "cloudinary": "*"

Once you've done that, save the file and run npm install. This will install the project's dependencies, including the Cloudinary module.

Step 3: Image Uploads

Cloudinary can be used for every aspect of an image gallery:

  • Uploading images
  • Creating and serving thumbnails
  • Fetching a list of images to display

Go to the top of app.js and add the following require statements:

var cloudinary = require('cloudinary')
  , fs = require('fs')

Now add a new route to handle uploads:

app.post('/upload', function(req, res){
  var imageStream = fs.createReadStream(req.files.image.path, { encoding: 'binary' })
    , cloudStream = cloudinary.uploader.upload_stream(function() { res.redirect('/'); });

  imageStream.on('data', cloudStream.write).on('end', cloudStream.end);

Add your Cloudinary configuration to app.configure:

app.configure('development', function(){
  cloudinary.config({ cloud_name: 'yours', api_key: 'yours', api_secret: 'yours' });

app.locals.api_key = cloudinary.config().api_key;
app.locals.cloud_name = cloudinary.config().cloud_name;

This allows you to use different Cloudinary accounts for development and production purposes, depending on your requirements.

The last two lines make the values available to the templates. The secret is not meant to be accessible from outside the server, but the api_key and cloud_name options can be used by client-side scripts.

Change views/index.jade to show an upload form:

extends layout

block content
  h1= title
  p Welcome to #{title}

  form(action="/upload", method="post", enctype="multipart/form-data")
    input(type="file", name="image")
    input(type="submit", value="Upload Image")

  - if (images && images.length)
    - images.forEach(function(image){
    - })

Before you try out the app, change the / route in app.js to load a set of images from Cloudinary:

app.get('/', function(req, res, next){
    res.render('index', { images: items.resources, title: 'Gallery' });

The cloudinary.api.resources method fetches all of the images in your account. Note that this is rate limited to 500 requests per hour -- I've used it here to keep the tutorial simple, but in production you should cache the results or store them in a database.

At this point, image uploads should work if you start up the app with npm start and navigate to http://localhost:3000, but the output won't look great without thumbnails.

Step 4: Thumbnails

Cloudinary supports a wide range of image transformations. The API is based around generating a URL that includes parameters to change the image in some way. All we need for the gallery is a simple crop, which is supported through the cloudinary.url method. Change the / route to pass a reference to the cloudinary object to the template:

app.get('/', function(req, res, next){
    res.render('index', { images: items.resources, title: 'Gallery', cloudinary: cloudinary });

Now, open views/index.jade so that it calls cloudinary.url with some options to get the desired effect:

- images.forEach(function(image){
    img(src=cloudinary.url(image.public_id + '.' + image.format, { width: 100, height: 100, crop: 'fill', version: image.version }))
- })

The important part here is this:

cloudinary.url(image.public_id + '.' + image.format, { width: 100, height: 100, crop: 'fill', version: image.version })

The cloudinary.url method generates a URL that includes the width, height, and crop options:


Because the API is based around URLs, you could easily use this from browser-based JavaScript, utilising Cloudinary to add behaviour that would typically be associated with server-side web development.

I've also included the version property, which is recommended by Cloudinary when overriding the public_id. It's returned by both the upload API and the admin API.

Step 5: Effects

The previous example can easily be adapted to generate lots of interesting effects. This change makes it generate images that feature a vignette lens effect:

- images.forEach(function(image){
    img(src=cloudinary.url(image.public_id + '.' + image.format, { width: 100, height: 100, crop: 'fill', effect: 'vignette', version: image.version }))
- })

The effect parameter can be one of the following effects:

  • grayscale
  • blackwhite
  • vignette
  • sepia
  • brightness
  • saturation
  • contrast
  • hue
  • pixelate
  • blur
  • sharpen

Some effects take an argument, and this is simply prefixed with a colon. For example, brightness:40.

As well as face detection, adding rounded corners, overlays, and other transformations are also available. Again, check the image transforms documentation for full details.

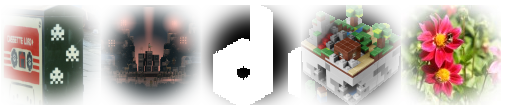

The vignette effect applied to several images.

jQuery Uploads

Cloudinary has a CORS API for file uploads which degrades to an iframe in legacy browsers. This means you can do image uploads with no server-side code at all! The cloudinary_js repository has a jQuery plugin, with jQuery UI support, which can be used to upload images.

Download the JavaScript files from the cloudinary/cloudinary_js repository and add them to the public/ folder. Then edit views/layout.jade to load jQuery and the other files in this order:

  block scripts

The block scripts part at the end is some Jade jiggery-pokery to allow HTML to be appended to this template from another template. Open views/index.jade and add this markup:

  h2 jQuery Uploads



block scripts
    // Configure Cloudinary
    $.cloudinary.config({ api_key: '!{api_key}', cloud_name: '!{cloud_name}' });

    $('.cloudinary-fileupload').bind('fileuploadstart', function(e){
      $('.preview').html('Upload started...');

    // Upload finished
    $('.cloudinary-fileupload').bind('cloudinarydone', function(e, data){
        $.cloudinary.image(data.result.public_id, { format: data.result.format, version: data.result.version, crop: 'scale', width: 100, height: 100 })
      return true;

This displays a form with a file input, generated by the cloudinary.uploader.image_upload_tag helper. That keeps the markup lightweight by doing all of the signing and other things Cloudinary's API needs behind the scenes.

The client-side JavaScript at the end of the template will display a message when an image is being uploaded, and then display it once it's finished uploading. The other event which I haven't used here is fileuploadfail, which is, of course, useful for displaying errors when file uploads fail.

If you want to read more about Cloudinary and jQuery, check out this article: Direct image uploads from the browser to the cloud with jQuery, Upload Images: Remote Uploads.

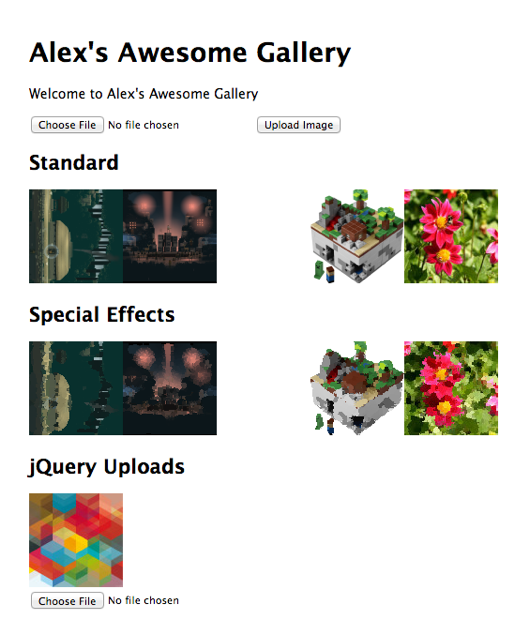

The completed gallery.

In this tutorial you've seen how to integrate both Node and client-side projects with Cloudinary. If you'd like more details on the service, visit Cloudinary.com.

This gallery example could be easily expanded using features from Cloudinary's API to do a lot of practical and cool stuff:

  • Pagination could be added
  • The effects API could be used for editing photos
  • Face detection could be used to tag people in photos

The full source for my example Express app is available here: https://github.com/alexyoung/dailyjs-cloudinary-gallery.
