Backbone.js Tutorial: List Views

27 Dec 2012 | By Alex Young | Tags backbone.js mvc node backgoog

Preparation

Before starting this tutorial, you’ll need the following:

  • alexyoung / dailyjs-backbone-tutorial at commit fcd653ec6
  • The API key from part 2
  • The “Client ID” key from part 2
  • Update app/js/config.js with your keys (if you’ve checked out my source)

To check out the source, run the following commands (or use a suitable Git GUI tool):

git clone git@github.com:alexyoung/dailyjs-backbone-tutorial.git
cd dailyjs-backbone-tutorial
git reset --hard fcd653ec6

Wireframe

The application we’re building has several main interface elements:

  • A two column layout for displaying task lists and tasks
  • Forms for adding and editing each item type
  • Buttons for invoking the forms, deleting items, and clearing complete items
  • Task state control (done checkbox)

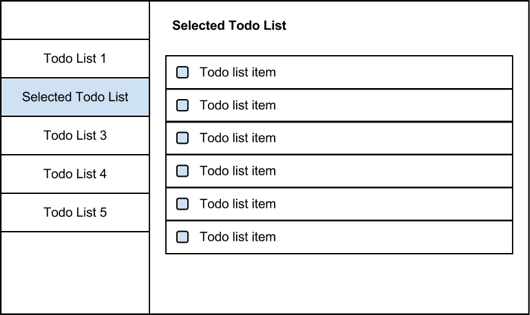

The image below shows the basic layout.

The application's wireframe.

In this tutorial we’ll start implementing the interface by using an unordered list to represent task lists.

List Items

Despite being relatively simple, implementing a navigable list of task lists involves several Backbone.js elements:

  • HTML templates
  • Backbone views: ListMenuView, ListMenuItemView
  • Backbone collection: TaskLists

The ListMenuView contains the task list menu, and the ListMenuItemView is the navigation item for each task list itself. This can be modeled as a ul and a set of li elements.

Create a new directory called app/js/views/lists to store the task list-related Backbone.View classes, and another called app/js/templates/lists for the corresponding templates.

View: ListMenuView

This view resides in app/js/views/lists/menu.js:

define(['views/lists/menuitem'], function(ListMenuItemView) {
  var ListMenuView = Backbone.View.extend({
    el: '.left-nav',
    tagName: 'ul',
    className: 'nav nav-list lists-nav',

    events: {
    },

    initialize: function() {
      this.collection.on('add', this.render, this);
    },

    render: function() {
      // TODO
    }
  });

  return ListMenuView;
});

It loads views/lists/menuitem which we’ll create in a moment. Then it binds itself to the .left-nav element which was created by AppView and its corresponding template. The menu itself is an unordered list, and it uses some class names that will become more relevant once styles are added.

Notice that this view expects a collection. Collections can be passed to views during instantiation. For example, new ListMenuView({ collection: lists }) will pass the lists collection to an instance of this view.

The render method should look like this:

render: function() {
  var $el = $(this.el)
    , self = this;

  this.collection.each(function(list) {
    var item, sidebarItem;
    item = new ListMenuItemView({ model: list });
    $el.append(item.render().el);
  });

  return this;
}

The view’s element is used as the container for each ListMenuItemView which is passed a model by iterating over the collection.

View: ListMenuItemView

The app/js/views/lists/menuitem.js is similar to the previous view, but makes use of a template and Backbone’s declarative event binding feature.

define(['text!templates/lists/menuitem.html'], function(template) {
  var ListMenuItemView = Backbone.View.extend({
    tagName: 'li',
    className: 'list-menu-item',

    template: _.template(template),

    events: {
      'click': 'open'
    },

    initialize: function() {
      this.model.on('change', this.render, this);
      this.model.on('destroy', this.remove, this);
    },

    render: function() {
      var $el = $(this.el);
      $el.data('listId', this.model.get('id'));
      $el.html(this.template(this.model.toJSON()));
      return this;
    },

    open: function() {
      var self = this;
      return false;
    }
  });

  return ListMenuItemView;
});

The template is app/js/templates/lists/menuitem.html:

<a href="#" class="list-title" data-list-id=""></a>

Notice that curly braces are used to insert values. This is provided by Underscore’s built-in template system.

The view’s open method is bound to click events, and I’ve also bound change and destroy model events to the view as well – these will come in handy later.

The template’s values are inserted by using the template method in render:

$el.html(this.template(this.model.toJSON()));

The model’s raw JSON is passed to template so title and id will be resolved to the correct values.

Invoking ListMenuView

Open app/js/app.js and add ListMenuView to the list of define requirements:

define([
  'gapi'
, 'views/app'
, 'views/auth'
, 'views/lists/menu'
, 'collections/tasklists'
],

function(ApiManager, AppView, AuthView, ListMenuView, TaskLists) {

Last week I added a console.log to print out the name of each list. Remove that code and change it to render the ListMenuView:

connectGapi: function() {
  var self = this;
  this.apiManager = new ApiManager(this);
  this.apiManager.on('ready', function() {
    self.collections.lists.fetch({ data: { userId: '@me' }, success: function(res) {
      self.views.listMenu.render();
    }});
  });
}

Go back up to the App constructor function to make it instantiate listMenu by passing the relevant collection:

var App = function() {
  this.views.app = new AppView();
  this.views.app.render();
  this.views.auth = new AuthView(this);
  this.views.auth.render();
  this.collections.lists = new TaskLists();
  this.views.listMenu = new ListMenuView({ collection: this.collections.lists });

  this.connectGapi();
};

Running It

Now if you run node server and visit http://localhost:8080/, you should see your task lists displayed in a simple unordered list.

Summary

The app is now communicating with Google, allowing users to sign in, and also displays the user’s task lists. It still doesn’t look too exciting because we haven’t yet applied any styles, but you should be able to adapt the code you’ve seen so far to work with other Google APIs and similar services.

This tutorial’s code is available in commit 82fe08e on GitHub.
